NEC PC-9800 Modelle-Übersicht von 1982 - 1991
sowie die zwei allerletzten 98-Modelle von 2000 (produziert bis 2003)
Nicht dargestellt sind hier die Modelle zwischen 1991 und 2000, sowie 98-Kompatible anderer Hersteller.
Ebenfalls nicht dargestellt sind die Servermodelle NEC SV-98 und SV-H98, Factory-Modelle NEC FC-9800 und FC-9821, Sonderserien wie RC-9801, SC-9821 u.a.
Der offizielle Name dieser PC-Familie ist "NEC PC-9800", sie wird aber in Japan meist nur "98" genannt, daher ist hier die Rede von 98-Modellen.
Die Technische Spezifikation stellt die
Beschreibungs-Basis dar, die Liste hier weist nur auf die Besonderheiten der einzelnen Modelle hin.
Abbildung |
98-Modell |
CPU |
MHz |
RAM |
Floppy, Harddisk |
Grafik |
[Anzahl der Slots] Besonderheit dieses PC |
ab wann |
Listenpreis |
* |
PC-9801 |
8086-2 | 5 |
128 KiB |
optional 2x ext. |
640×400 8 Farben |
[5x C-Bus]
optionale externe 200mm-2D-Floppylaufwerke |
1982.10 |
298.000¥ |
* |
PC-9801 E |
8086-2 | 8/5 |
128 KiB |
optional 2x ext. |
640×400 8 Farben | [6x C-Bus]
optionale externe 200mm-2D-Floppylaufwerke |
1983.11 |
215.000¥ |
* |

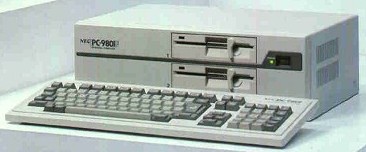

PC-9801 F1 PC-9801 F2 |
8086-2 | 8/5 |
128 KiB |
1x
2x |
640×400 8 Farben | [6x C-Bus] |
1983.10 |
328.000¥ 398.000¥ |
* |
PC-9801 F3 |
8086-2 | 8/5 |
256 KiB |
1x , 10 MB SASI |
640×400 8 Farben | [2x C-Bus] |
1984.10 |
758.000¥ |
* |
PC-9801 M2 |
8086-2 | 8/5 |
256 KiB |
2x |
640×400 8 Farben | [3x C-Bus]
erstes 98-Modell mit HD-Floppys:
High Density 1232 KiB |
1984.11 |
415.000¥ |
* |
PC-9801 M3 |
8086-2 | 8/5 |
256 KiB |
1x , 20 MB SASI |
640×400 8 Farben | [2x C-Bus] |
1985.02 |
838.000¥ |
* |
PC-98XA model 1 PC-98XA model 2 PC-98XA model 3 | 80286 | 8 |
512 KiB
max. 768 KiB |
0x
2x
1x , 20 MB SASI |
1120×750 16 Farben aus 4096 |
[4x C-Bus]
High-Resolution-Modus |
1985.05 |
575.000¥ 695.000¥ 1.035.000¥ |
* |
PC-9801 U2 |
V30 | 8 |
128 KiB |
2x |
640×400 8 Farben | [2x C-Bus]
erstes 98-Modell mit 90mm-Floppys:
Double Density 720 KiB |
1985.06 |
298.000¥ |
* |
PC-9801 VF2 |
V30 | 8 |
256 KiB |
2x |
640×400 8 Farben | [4x C-Bus] |
1985.07 |
348.000¥ |
* |
PC-9801 VM0 PC-9801 VM2 PC-9801 VM4 |
V30 | 10/8 |
384 KiB |
0x
2x
2x , 20 MB SASI |
640×400 8 Farben aus 4096 | [4x C-Bus]
bei Aufrüstung mit "PC-9801-24" waren es 16 Farben aus 4096 |
1985.07 1985.07 1985.10 |
295.000¥ 415.000¥ 830.000¥ |
* |
PC-98XA model 11 PC-98XA model 21 PC-98XA model 31 | 80286 | 8 |
512 KiB
max. 768 KiB |
0x
2x
1x , 20 MB SASI |
1120×750 16 Farben aus 4096 |
[4x C-Bus] High-Resolution-Modus |
1986.05 |
495.000¥ 575.000¥ 865.000¥ |
* |
PC-9801 UV2 |
V30 | 10/8 |
384 KiB
max. 640 KiB |
2x |
640×400 16 Farben aus 4096 |
[2x C-Bus]
erstes Modell mit 90mm-HD-Floppys:
High Density 1232 KiB, und 3-stimmig FM-Sound |
1986.06 |
318.000¥ |
* |
PC-98 LT model 1 PC-98 LT model 2 |
V50 | 8 |
384 KiB
max. 640 KiB +64 KiB Syst. |
1x
1x , PC-PR102TL (Set mit ext. Drucker) |
640×400 monochrom grün/gelb (reflektiv) |
[Modem-Slot]
Klapprechner 10,7" LCD
jap. Dict. 512 KiB ROM
+ DOS 512 KiB ROM
305×265×65mm, 3,8kg |
1986.10 1986.11 |
238.000¥ 288.000¥ |
* |
PC-9801 VX0 PC-9801 VX2 PC-9801 VX4 |
80286 (V30) | 8 (10/8) |
640 KiB
max. 8,6 MiB |
0x
2x
2x , 20 MB SASI |
640×400 16 Farben aus 4096 | [4x C-Bus] |
1986.10 ( .11 ?) |
353.000¥ 433.000¥ 693.000¥ |
* |
PC-98XL model 1 PC-98XL model 2 PC-98XL model 4 |
80286 (V30) | 10 (8) |
512 KiB
max. 7,5 MiB |
0x
2x
2x , 20 MB SASI |
1120×750 16 Farben aus 4096 |
[4x C-Bus]
High-Resolution-Modus |
1986.12 |
495.000¥ 575.000¥ 835.000¥ |
* |
PC-9801 VM21 PC-9801 VM41 |
V30 | 10/8 |
640 KiB |
2x
2x , 20 MB SASI |
640×400 16 Farben aus 4096 |
[4x C-Bus] |
1986.11 |
390.000¥ |
* |
PC-9801 UV21 |
V30 | 10/8 |
640 KiB |
2x |
640×400 16 Farben aus 4096 | [2x C-Bus] FM Sound
|
1987.06 |
318.000¥ |
* |
PC-9801 VX01 PC-9801 VX21 PC-9801 VX41 PC-9801 VX41/WN |
80286 (V30) | 10/8 (10/8) |
640 KiB
max. 8,6 MiB |
0x
2x
2x , 20? MB SASI
2x , 20? MB SASI |
640×400 16 Farben aus 4096 | [4x C-Bus]
VX41/WN mit Win 1.0 |
1987.06 1987.06 1987.06 1987.07 |
353.000¥ 433.000¥ 630.000¥ 658.000¥ |
* |
PC-98XL2 |
80386dx (V30) | 16 (8) |
1664 KiB ?
max.14,5 MiB (8 MiB slots) |
2x |
1120×750 16 Farben aus 4096 |
[4x C-Bus]
High-Resolution-Modus |
1987.10 |
988.000¥ |
* |
PC-98 LT 11 PC-98 LT 21 |
V50 | 8 |
640 KiB |
1x
1x , PC-PR102TL (Set mit ext. Drucker) |
640×400 monochrom grün/gelb (reflektiv) |
[Modem-Slot]
Klapprechner 10,7" LCD
jap. Dict. 512 KiB ROM
+ DOS 512 KiB ROM
310×285×68mm, 3,8kg |
1987.10 |
238.000¥ 288.000¥ |
* |
PC-9801 UX21 PC-9801 UX41 |
80286 (V30) | 10 (8) |
640 KiB
max. 6,6 MiB |
2x
2x , 20 MB SASI |
640×400 16 Farben aus 4096 | [3x C-Bus] FM Sound |
1987.10 |
348.000¥ 545.000¥ |
* |
PC-9801 LV21 |
V30 | 10/8 |
640 KiB |
2x |
640×400 8 Graustufen |
[per Adapter + I/O Unit]
Klapprechner xx" EFL,
nur Beep-Sound,
339×315×85mm, 6.5kg |
1988.02 |
345.000¥ |
* |
PC-9801 CV21 |
V30 | 10/8 |
640 KiB |
2x |
640×400 16 Farben aus 4096 | [2x C-Bus]
10"-CRT integriert, FM Sound |
1988.03 |
355.000¥ |
* |
PC-9801 UV11 |
V30 | 10/8 |
640 KiB |
2x |
640×400 16 Farben aus 4096 | [2x C-Bus]
Rechner kann waagerecht oder senkrecht stehen, FM Sound |
1988.03 |
265.000¥ |
* |
PC-9801 RA2 PC-9801 RA5 |
80386dx (V30) | 16 (8) |
1664 KiB
max.14,6 MiB |
2x
2x , 40 MB SASI |
640×400 16 Farben aus 4096 | [4x C-Bus] |
1988.07 |
498.000¥ 736.000¥ |
** |
Dterm400PC |
V50 | 8 |
640 KiB |
1x |
640×400 monochrom grün/gelb (reflektiv) |
[2x C-Bus] DtermV-Terminal
für PBX APEX2400IMS,
seriell 9600bps, parallel,
10,7" LCD wie PC-98LT |
1988.07 |
398.000¥ |
|
PC-9801 RX2 PC-9801 RX4 |
80286 (V30) | 12/10 (8) |
640 KiB
max.11,6 MiB |
2x
2x , 40 MB SASI |
640×400 16 Farben aus 4096 | [4x C-Bus] |
1988.09 |
398.000¥ 566.000¥ |
* |
PC-9801 LS 2 PC-9801 LS 5 |
386sx (V30) | 16 (8) |
1664 KiB
max. 4,6 MiB |
2x
2x , 40 MB SASI |
640×400 15Graustufen |
[per Adapter + I/O Unit]
Klapprechner xx" Plasma, nur Beep-Sound,
339×380×103mm, LS2: 8.1kg, LS5: 8.8kg ext: 16 Farben aus 4096 |
1988.10 1988.11 |
628.000¥ 866.000¥ |
|
PC-9801 VM11 |
V30 | 10/8 |
640 KiB |
2x |
640×400 16 Farben aus 4096 | [4x C-Bus] |
1988.11 |
328.000¥ |
|
PC-9801 LV22 |
V30 | 10/8 |
640 KiB |
2x |
640×400 8 Graustufen |
[per Adapter + I/O Unit]
Klapprechner xx" EFL, nur Beep-Sound,
339×315×98mm, 6.5kg ext: 16 Farben aus 4096 |
1989.01 |
378.000¥ |
* |
PC-98RL model 2 PC-98RL model 5 |
80386dx (V30) | 20 (8) |
1664 KiB
max.14,6 MiB (8 MiB slots) |
2x
2x , 40 MB SASI |
1120×750 16 Farben aus 16 Mio? |
[4x C-Bus] High Resolution Mode |
1989.02 |
735.000¥ 970.000¥ |
|
PC-9801 EX2 PC-9801 EX4 |
80286 (V30) | 12/10 (8) |
640 KiB
max. 9,6 MiB |
2x
2x , 20 MB SASI |
640×400 16 Farben aus 4096 | [3x C-Bus] FM Sound |
1989.04 |
348.000¥ 488.000¥ |
* |
PC-9801 ES2 PC-9801 ES5 |
80386sx (V30) | 16 (8) |
1664 KiB
max.10,6 MiB |
2x
2x , 40 MB SASI |
640×400 16 Farben aus 4096 |
[3x C-Bus] FM Sound |
1989.04 |
448.000¥ 638.000¥ |
* |
PC-9801 LX 2 PC-9801 LX 4 PC-9801 LX 5 |
80286 (V30) | 12/10 (8) |
640 KiB
max. 3,6 MiB |
2x I
2x , 20 MB SASI
2x , 40 MB SASI |
640×400 8 Graustufen |
[per Adapter + I/O Unit]
Klapprechner xx" EFL,
339×380×103mm, 7,6kg
ext: 16 Farben aus 4096 |
1989.04 1989.04 1989.06 |
448.000¥ 588.000¥ 638.000¥ |
* |
PC-9801 DO |
V30 und µPD70008 | 10/8 8 |
640 KiB
im 88-Modus nur 192 KiB |
2x im 88-Modus 320 KiB |
640×400 16 Farben aus 4096 |
[1x C-Bus] FM-Sound,
im 88-Modus kompatibel zu PC-8801 MA2 |
1989.06 |
298.000¥ |
* |
PC-98 LX5C |
80286 (V30) | 12/10 (8) |
640 KiB
max. 3,6 MiB |
2x , 40 MB SASI |
640×400 8 Farben |
[per Adapter + I/O Unit]
Klapprechner xx" STN,
339×380×115mm, 8,7kg
ext: 16 Farben aus 4096 |
1989.08 |
748.000¥ |
* |
PC-9801 RX21 PC-9801 RX51 |
80286 (V30) | 12/10 (8) |
640 KiB ?
max.11,6 MiB |
2x
2x , 40 MB SASI |
640×400 16 Farben aus 4096 | [4x C-Bus] |
1989.10 |
338.000¥ 508.000¥ |
* |
PC-9801 RS21 PC-9801 RS51 |
80386sx (V30) | 16 (8) |
640 KiB
max.14,6 MiB |
2x
2x , 40 MB SASI |
640×400 16 Farben aus 4096 | [4x C-Bus] |
1989.10 |
398.000¥ 568.000¥ |
* |
PC-9801 RA21 PC-9801 RA51 |
80386dx (V30) | 20/16 (8) |
1664 KiB
max.14,6 MiB |
2x
2x , 40 MB SASI |
640×400 16 Farben aus 4096 | [4x C-Bus] |
1989.11 |
498.000¥ 668.000¥ |
* |
PC-9801 N | V30 | 10 |
640 KiB mit EMS bis max.2,6 MiB plus 1,2 MiB RAMdrive |
1x |
640×400 8 Graustufen |
[1x C-Bus, 110-pin-Bus]
Klapprechner 8,9" FL,
nur Beep-Sound,
316×253×44mm, 2,9kg ext: 16 Farben aus 4096 |
1989.11 |
248.000¥ |
* |
PC-H98 70-002 PC-H98 70-100 |
80386dx | 33/8 |
002: 1.5 MiB 100: 5.5 MiB
max.27,5 MiB |
2x
2x , 100 MB SCSI |
1120×750 16 Farben aus 16Mio. |
[4x NESA]
High-Resolution-Modus,
alle Konnektoren anders - nach "H98-Standard" ➷ |
1990.01 |
995.000¥ 1.680.000¥ |
* |
PC-9801 T/W2 |
80386sx (V30) | 20 (8) |
640 KiB
max.12,6 MiB (8 MiB slots) |
2x |
640×400 8 Graustufen |
[2x C-Bus]
portabler PC xx" CFL, nur Beep-Sound,
364x460x120mm, 9.0kg, ext: 16 Farben aus 4096 |
1990.02 |
548.000¥ |
* |
PC-9801 T/W5 |
80386sx (V30) | 20 (8) |
1664 KiB
max.13,6 MiB (8 MiB slots) |
2x , 40 MB SASI |
640×400 8 Graustufen |
[2x C-Bus]
portabler PC xx" CFL, nur Beep-Sound,
364x460x120mm, 10.4kg ext: 16 Farben aus 4096 |
1990.02 |
758.000¥ |
** |
Dterm410PC |
V30 | 10/8 |
640 KiB |
2x |
640×400 8 Graustufen |
[2x C-Bus]
PBX-Dterm55-Terminal,
seriell 9600bps, parallel,
8,9" FL, FM-Sound |
1990.04 |
512.000¥ |
* |
PC-9801 T/S5 PC-9801 T/F5 |
80386sx (V30) | 20 (8) |
1664 KiB
max.14,6 MiB (8 MiB slots) |
2x , 40 MB SASI
2x , 40 MB SASI |
640×400 8 Farben |
[2x C-Bus]
portabler PC xx" LCD S5: STN, F5: TFT, nur Beep-Sound,
364x460x120mm, S5:10.6kg, F5:10.4kg ext:16 Farben aus 4096 |
1990.06 1990.07 |
850.000¥ 1.150.000¥ |
* |
PC-9801 NS PC-9801 NS20 |
80386sx | 12 |
1664 KiB
max.9,6 MiB plus 1,2 MiB RAMdrive |
1x
1x , 20 MB SASI |
640×400 8 Graustufen |
[1x RAM-Slot] Klapprechner 8,9" CFL
nur Beep-Sound,
316×254×53mm, ?kg
ext: 16 Farben aus 4096 |
1990.06 1990.09 |
248.000¥ 298.000¥ |
* |
PC-98RL model 21 PC-98RL model 51 |
80386dx (V30) | 20 (8) |
1664 KiB
max.14,6 MiB (8 MiB slots) |
2x
2x , 40 MB SASI |
1120×750 16 Farben aus 16 Mio? |
[4x C-Bus] High-Resolution-Modus |
1990.09 |
700.000¥ 860.000¥ |
* |
PC-H98 60-002 PC-H98 60-040 PC-H98 60-100 |
80386dx | 25 |
002: 1.5 MiB 040: 1.5 MiB 100: 5.5 MiB
max.27,5 MiB |
2x
2x , 40 MB SASI
2x , 100 MB SCSI |
1120×750 16 Farben aus 16Mio. |
[4x NESA]
High-Resolution-Modus,
alle Konnektoren anders - nach "H98-Standard" ➷ |
1990.09 |
835.000¥ 995.000¥ 1.500.000¥ |
* |
PC-H98 U60-002 PC-H98 U60-040 PC-H98 U60-100 |
80386dx | 25 |
002: 1.5 MiB 040: 1.5 MiB 100: 5.5 MiB
max.27,5 MiB |
2x
2x , 40 MB SASI
2x , 100 MB SCSI |
1120×750 16 Farben aus 16Mio. |
[4x NESA]
High-Resolution-Modus,
alle Konnektoren anders - nach "H98-Standard" ➷ |
1990.09 |
835.000¥ 995.000¥ 1.500.000¥ |
* |
PC-H98 100 |
i486sx | 25 |
7.5 MiB
max.33,5 MiB |
2x , 100 MB SCSI |
1120×750 16 Farben aus 16Mio. |
[4x NESA]
High-Resolution-Modus,
alle Konnektoren anders - nach "H98-Standard" ➷ |
1990.09 |
2.150.000¥ |
* |
PC-H98 U100 |
i486sx | 25 |
7.5 MiB
max.33,5 MiB |
2x , 100 MB SCSI |
1120×750 16 Farben aus 16Mio. |
[4x NESA]
High-Resolution-Modus,
alle Konnektoren anders - nach "H98-Standard" ➷ |
1990.09 |
2.150.000¥ |
* |
PC-98HA |
V50 | 10 |
640 KiB plus 1,2 MiB RAMdrive |
externes Floppylaufwerk an optionaler Docking-Station |
640×400 monochrom |
[0] Mini-Klapprechner,
xx" LCD ohne Backlight,
nur Beep-Sound,
234×148×36mm, 1,1kg |
1990.10 |
198.000¥ |
* |
PC-9801 NV (grau) PC-9801 NV (Blau) PC-9801 NV (Pink) |
V30HL | 16 |
1664 KiB mit EMS bis max.8,6 MiB plus 1,2 MiB RAMdrive |
1x |
640×400 8 Graustufen |
[1x RAM, 110-pin-Bus] Klapprechner 8,9" CFL
nur Beep-Sound,
316×253×50mm, 2,98kg
ext: 16 Farben aus 4096 |
1990.11 1991.10 1991.10 |
248.000¥ 278.000¥ 278.000¥ |
* |
PC-9801 DX2 PC-9801 DX5 |
80286 | 12 |
640 KiB
max.14,6 MiB (12 MiB slots) |
2x
2x , 40 MB SASI |
640×400 16 Farben aus 4096 | [4x C-Bus] FM Sound |
1990.11 |
318.000¥ 468.000¥ |
* |
PC-9801 DX2/U2 PC-9801 DX5/U2 |
80286 | 12 |
640 KiB
max.14,6 MiB (12 MiB slots) |
2x
2x , 40 MB SASI |
640×400 16 Farben aus 4096 | [4x C-Bus] FM Sound |
1990.11 |
318.000¥ 468.000¥ |
* |
PC-9801 DO+ |
V33A und µPD70008 | 16 8 |
640 KiB erweiterbar per EMS
im 88-Modus nur 192 KiB |
2x im 88-Modus 320 KiB |
640×400 16 Farben aus 4096 |
[1x C-Bus] FM-Sound,
im 88-Modus kompatibel zur PC-8801-Familie mit Soundboard-2, Sampling |
1990.11 |
278.000¥ |
* |
PC-9801 DS2 PC-9801 DS5 |
80386sx (V30) | 16 (8) |
640 KiB
max.14,6 MiB (12 MiB slots) |
2x
2x , 40 MB SASI |
640×400 16 Farben aus 4096 |
[4x C-Bus] FM Sound |
1991.01 |
358.000¥ 508.000¥ |
* |
PC-9801 DS/U2 PC-9801 DS/U5 |
80386sx (V30) | 16 (8) |
640 KiB
max.14,6 MiB (12 MiB slots) |
2x
2x , 40 MB SASI |
640×400 16 Farben aus 4096 |
[4x C-Bus] FM Sound |
1991.01 |
358.000¥ 508.000¥ |
* |
PC-9801 DA2 PC-9801 DA5 PC-9801 DA7 |
80386dx (V30) | 20 (8) |
1664 KiB
max.14,6 MiB (12 MiB slots) |
2x
2x , 40 MB SASI
2x , 100 MB SCSI |
640×400 16 Farben aus 4096 |
[4x C-Bus] FM Sound |
1991.01 1991.01 1990.02 |
448.000¥ 598.000¥ 698.000¥ |
* |
PC-9801 DA/U2 PC-9801 DA/U5 PC-9801 DA/U7 |
80386dx (V30) | 20 (8) |
1664 KiB
max.14,6 MiB (12 MiB slots) |
2x
2x , 40 MB SASI
2x , 100 MB SCSI |
640×400 16 Farben aus 4096 |
[4x C-Bus] FM Sound |
1991.01 1991.01
1991.02 |
448.000¥ 598.000¥ 698.000¥ |
* |
PC-9801 UF |
V30HL | 16/8 |
640 KiB
max.12,6 MiB |
2x |
640×400 16 Farben aus 4096 |
[2x C-Bus] FM Sound |
1991.02 |
218.000¥ |
* |
PC-9801 UR PC-9801 UR20 |
V30HL | 16/8 |
640 KiB plus 1,2 MiB RAMdrive
max.12,6 MiB |
1x
1x , 20 MB SASI |
640×400 16 Farben aus 4096 |
[2x C-Bus] FM Sound |
1991.02 |
218.000¥ 348.000¥ |
* |
PC-H98S 8-002 PC-H98S 8-040 PC-H98S 8-100 |
i486sx | 20 |
1664 KiB
max.45,6 MiB |
2x
2x , 40 MB SASI
2x , 100 MB SCSI |
640×400 16 Farben aus 16Mio. |
[4x NESA]
optional auch 256 Farben,
alle Konnektoren anders - nach "H98-Standard" ➷ |
1991.05 |
548.000¥ 698.000¥ 798.000¥ |
* |

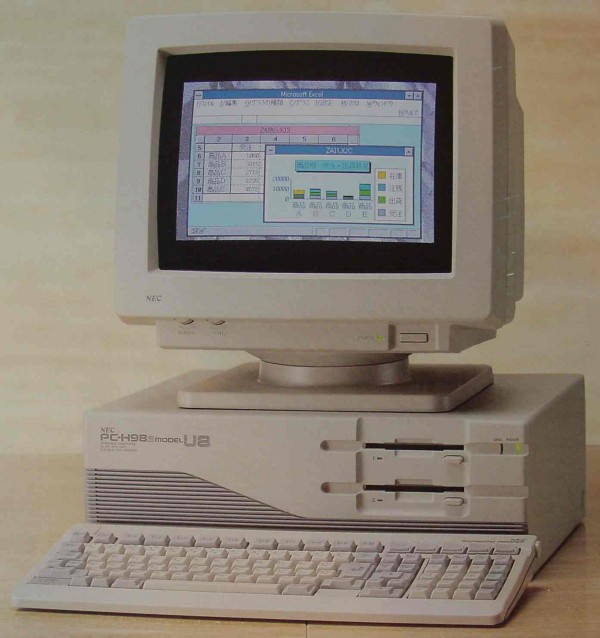

PC-H98S U8-002 PC-H98S U8-040 PC-H98S U8-100 |
i486sx | 20 |
1664 KiB
max.45,6 MiB |
2x
2x , 40 MB SASI
2x , 100 MB SCSI |
640×400 16 Farben aus 16Mio. |
[4x NESA]
optional auch 256 Farben,
alle Konnektoren anders - nach "H98-Standard" ➷ |
1991.05 |
548.000¥ 698.000¥ 798.000¥ |
* |
PC-9801 T/W7 |
80386sx (V30) | 20 (8) |
1664 KiB
max.14,6 MiB (10 MiB slots) |
2x , 100 MB SCSI |
640×400 8 Graustufen |
[2x C-Bus]
portabler PC xx" CFL, nur Beep-Sound,
364x460x120mm, xx kg ext:16 Farben aus 4096 |
1991.07 |
750.000¥ |
* |
PC-9801 T/F51 PC-9801 T/F71 |
80386sx (V30) | 20 (8) |
1664 KiB
max.14,6 MiB (10 MiB slots) |
2x , 40 MB SASI
2x , 100 MB SCSI |
640×400 16 Farben aus 4096 |
[2x C-Bus]
portabler PC xx" TFT nur Beep-Sound,
364x460x120mm, 10.4kg |
1991.07 |
850.000¥ 950.000¥ |
* |
PC-9801 NC PC-9801 NC40 |
80386sx | 20 |
2,6 MiB plus 1,2 MiB RAMdrive
max.10,6 MiB |
1x
1x , 40 MB SASI? |
640×400 16 Farben aus 4096 |
[1x C-Bus, 110-pin-Bus]
Klapprechner 8,9"? TFT nur Beep-Sound,
316×254×56mm, NC:3,2kg, NC40:3,5kg |
1991.10 |
598.000¥ 738.000¥ |
|
Die vielen weiteren neuen 98-Modelle bis 1999 kenne ich nicht gut,
da ich 1991 Japan wieder verlassen habe, und stelle sie daher hier nicht vor.
Hier sei nur der PC-9821 model S1/S2 gezeigt, der erste seiner Art, siehe History. |
* |
PC-9821 S1 PC-9821 S2 |
80386sx | 20 |
S1:1,6 MiB S2:3,6 MiB
max.14,6 MiB (10 MiB slots) |
2x
2x , 40 MB SCSI
(Set mit 15"-Monitor)
|
640×400 640×480 16 Farben aus 4096 |
[2x C-Bus]
das erste 9821-Modell
PCM & FM-Sound,
SCSI-Interface |
1992.11 |
318.000¥ 438.000¥ |
|
← Modelle von 1992 bis 1999 nicht dargestellt.
Wer sich über alle PC-9800 Modelle informieren will, sollte sich die Websites der zahlreichen 98-Fans in Japan ansehen.
Besonders gefallen haben mir die Websites von Mr. Takakazu Fukumoto:
"With 98" (japanisch),
und die von Mr. Kato: "JE1VUJ Homepage" (japanisch)
|
Nachdem NEC 1997.09 verkündet hatte, keine wirklich neuen 98-Modelle mehr herauszubringen, wurden aber einige bestehende 98-Modelle noch bis 2000.05 weitergepflegt und mit immer schnelleren Prozessoren angeboten. Die Produktion dieser letzten 98-Modelle wurde erst im Jahr 2003 endgültig eingestellt.
Zum Abschluss der Liste hier der letzte Notebook der 98-Familie und der letzte Desktop-PC der 98-Familie, die mir bekannt sind: |
* |
PC-9821 Nr300
mit Win 95 / Win 98 SE |
Pentium MMX | 300 |
32 MiB EDO
max.128 MiB |
1x , 8,4 GB IDE,
1x CDROM-Laufwerk
(16x, max. 24x) |
800×600 262144 Farben, Trident Cyber9385 |
[2x PCMCIA II, ZV-Port]
Klapprechner 12,1" TFT,
Cyber9385-1 (2 MiB),
FM & PCM Sound,
IrDA 4Mbps, Video-Out,
306×243×47mm, 3,4kg |
2000.05 *** |
358.000¥ |
* |
PC-9821 Ra43
mit DOS 6.2 oder Win 95 / Win 98 SE |
Celeron | 433 |
32 MiB ECC-EDO
max.256 MiB |
1x , 8,4 GB IDE,
1x CDROM-Laufwerk
(16x, max. 24x) |
1280×1024 256 Farben, 1024×768 65536 Farben, 800×600 Truecolor |
[3x C-Bus, 2x PCI]
Trident TGUI9682,
LAN 100BaseTX |
2000.05 *** |
238.000¥
mit Windows: 248.000¥ |
Die ab 1998 von NEC herausgebrachten
PC-98NX-Computer sind nicht 98-kompatibel,
sondern IBM- bzw. DOS/V-kompatibel, und gehören deshalb nicht hierher.
|
* : Foto © NEC, aus dem jeweiligen Originalprospekt
** : Foto © "With 98"
***: In einer früheren Ausgabe meiner Website stand hier fälschlich das Jahr 1997, aber 1997 war die Notebook-Serie Nr erst beim Modell Nr13 mit einem 133MHz-Pentium angekommen, und die Desktop-Serie RA erst beim Modell Ra266 mit einem 266MHz-PentiumⅡ. Ich bitte den Irrtum zu entschuldigen.
|
"RAMdrive" = Fähigkeit, eine 98-Diskette (1232 KiB) 1-zu-1 in einen extra Speicher einzulesen und dann von dort zu benutzen.
Alte Floppylaufwerke: : 200mm-2D-Laufwerk, : 130mm-DD-Laufwerk (640/720 KiB),
: 90mm-DD-Laufwerk (720 KiB),
High Density Floppylaufwerke: :
130mm-HD-Laufwerk (1232/720 KiB),
: 90mm-HD-Laufwerk (1232/720 KiB),
: 90mm-HD-Laufwerk (1440/1232/720 KiB)
(siehe auch Floppy-Kompatibilität)
NESA ist der zu EISA analoge 32-bit-Bus von NEC, in NESA-Slots kann man wahlweise 32-bit-NESA-Boards oder 16-bit-C-Bus-Boards stecken.
PC-8801 oder kurz "88" ist der Name einer von NEC vor der PC-9800-Serie in Japan vertriebenen 8-bit-PC-Familie.
Die Modelle PC-8801 VA, VA2 und VA3 enthalten neben der Z80A-CPU auch eine (16-bit) V30 CPU , sind aber nicht PC-9800-kompatibel!
Die obige Tabelle enthält nur die Daten der nicht aufgerüsteten PC-9800-Basismodelle, mit einer Lücke zwischen 1991 und 1997.
NEC brachte im Rahmen der PC-9800-Familie auch zahlreiche Server-Modelle (SV-98) und Factory-Modelle mit stabilerem Gehäuse als
Einschub in Industrie-Racks (FC-9800-Serie) heraus, die alle 98-kompatibel sind.
Die exotische Telefon-PC-Kombination "Dterm 410PC" von NEC (1990) habe ich in der obigen Liste aufgeführt.
Daneben gab es auch noch einige andere 98-kompatible exotische Modelle von NEC wie
den RC-9801 (ein Klapprechner mit integriertem 800MHz-F1D-Funkterminal, 1994), und den SC-9821A (ein Arbeitsplatzrechner mit besonders
vielen Kommunikationsschnittstellen, ebenfalls 1994).
Und auch andere Hersteller, vor allem Seiko Epson,
produzierten von 1987 bis 1995 zahlreiche 98-kompatible Klapprechner und auch Arbeitsplatzrechner
(z.B. die japanischen Epson PC-Modelle PC-286, PC-386, PC-486, und PC-586).
Die Behandlung all dieser weiteren PC-Modelle und auch der von Third Party Herstellern zahlreich angebotenen
Erweiterungen und Interfaces für die echten 98-Computer und die 98-Kompatiblen würde den Rahmen dieser Website
gewaltig sprengen.
Ich möchte daher hier nur noch auf eine optionale Erweiterung hinweisen, die ich mir 1988 selbst -
neben einer 2 MiB RAM Erweiterung von Buffalo -
für meinen damaligen "PC-9801 UV2" geleistet habe, nämlich das Truecolor-Grafikboard "Hyperframe" der jap. Firma
Digital Arts, das ein zusätzliches graphisches Video-RAM (768 KiB) für 640×400 Pixel in 16 Millionen Farben bereitstellt. Das Bild der Hyperframe-Karte kann den 98-eigenen Text- und Graphik-Screens überlagert bzw. superimposed werden. Da der V30-Prozessor des "UV2" ("yuu-bii-tsuu")
normalerweise gar nicht mit soviel RAM umgehen kann, kam dort die 98-typische Variante des Bankswitchings zum Tragen:
sowohl die 2 MiB-Speichererweiterung selbst als auch der Speicher der Zusatz-Grafikkarte wird dabei als lauter 128-KiB-Blöcke
in die obersten 128 KiB des Arbeitsspeicher-Adressraums (ab Adresse $80000) umschaltbar eingeblendet.
DISCLAIMER: Alle Angaben auf dieser Seite erfolgen nach bestem Wissen, jedoch ohne Gewähr.
Dies ist eine nicht-kommerzielle Fan-Website
zurück zur Seite über die NEC PC-9800 Computerfamilie
© 2005-2006 Elmar Dünßer (Duensser)
|
